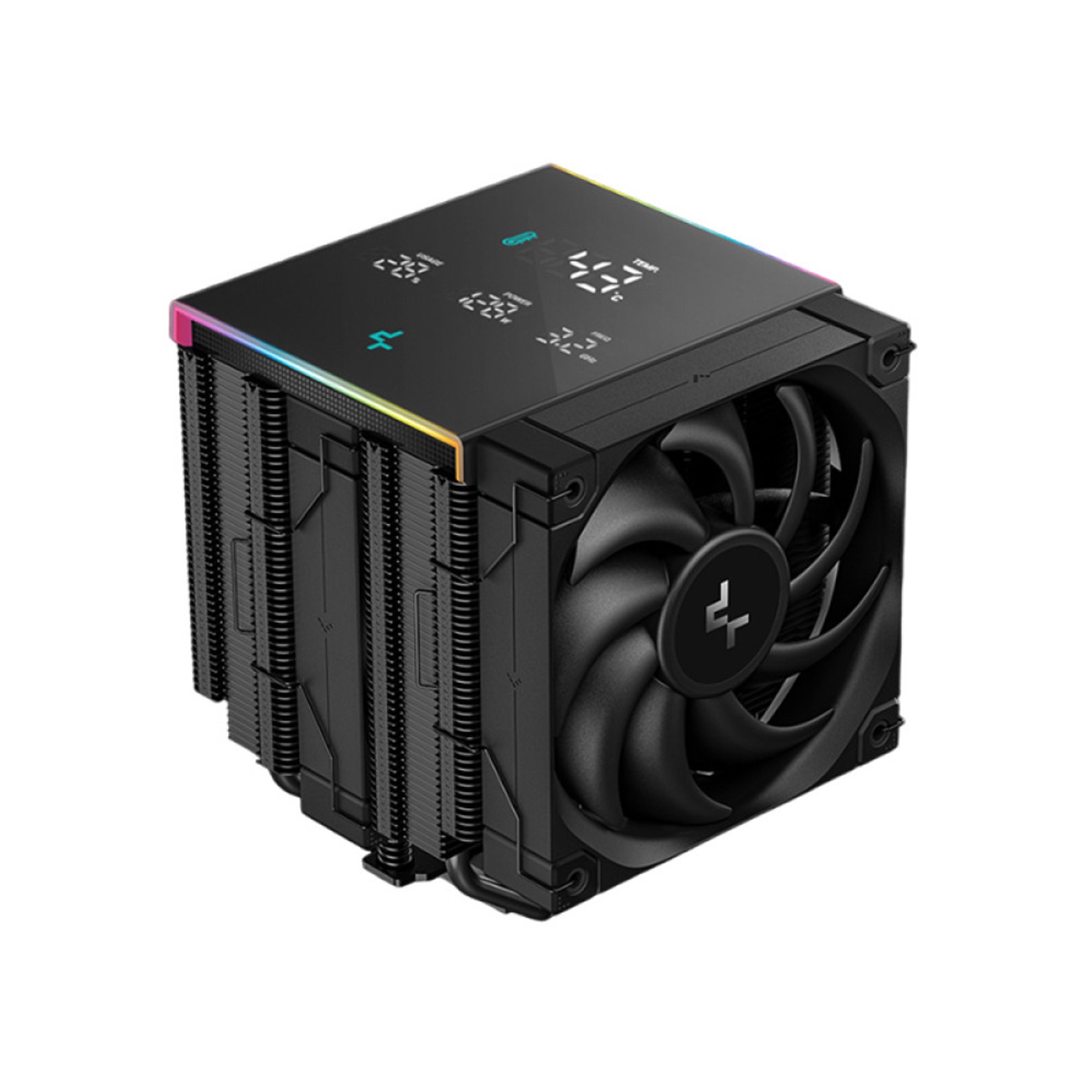

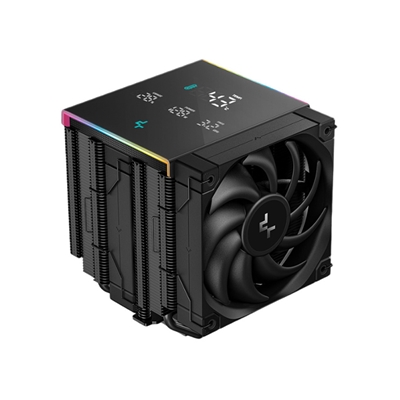

DeepCool AK620 Digital Pro CPU Air Cooler, Dual-Tower with Digital Display, 120mm FDB Fans, ARGB Lighting, 6 Copper Heatpipes, LGA1700/AM5 Compatible, High-Performance Quiet Cooling for Gaming PCs

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 1750RPM
• LED Colour: Addressable RGB

The AK620 Digital Pro is designed for users seeking elite cooling performance, real-time system information, and stylish RGB accents. The dual 120mm PWM fans provide strong airflow while maintaining quiet operation. The heatsink’s dual-tower structure and six heatpipes offer highly efficient thermal dissipation, making it ideal for high TDP processors.

The standout feature is the integrated multi-line digital screen, which displays vital CPU data in real time and is fully configurable through DeepCool’s dedicated software. This cooler also includes ARGB lighting, allowing users to synchronize lighting with their build’s theme via supported motherboard headers.

Product Identification

Manufacturer:
DeepCool

Model Number:
R-AK620-BKAPMN-G

EAN:
6933412728818

Physical Dimensions

Product Dimensions:
129 x 138 x 163 mm (L x W x H)

Heatsink Dimensions:
127 x 110 x 154 mm (L x W x H)

Net Weight:
1491 g

Cooling System

Heatpipes:
6 x 6 mm copper heatpipes

Fan Dimensions:
120 x 120 x 25 mm

Fan Speed:
500–1750 RPM (±10%)

Fan Airflow:
60.89 CFM

Fan Air Pressure:
2.91 mmAq

Noise Level:
=25 dB(A)

Fan Connector:
4-pin PWM

Bearing Type:
Fluid Dynamic Bearing

Rated Voltage:
12 VDC

Rated Current:
0.25 A

Power Consumption:
3 W

Lighting & Display

LED Type:
Addressable RGB

LED Connector:
3-pin (+5V-D-G) and 9-pin USB 2.0

LED Rated Voltage:
5 VDC

LED Power Consumption:
5.55 W

Display Type:
Multi-line digital screen

Display Functions:
Real-time monitoring of CPU temperature, usage, wattage, and frequency

Control Interface:
Software control via motherboard USB 2.0 header

Compatibility

Intel Socket Support:
LGA2066, LGA2011-v3, LGA2011, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155

AMD Socket Support:
AM5, AM4

Additional Features

Mounting System:
All-metal secure mounting kit

Warranty:
3 years
