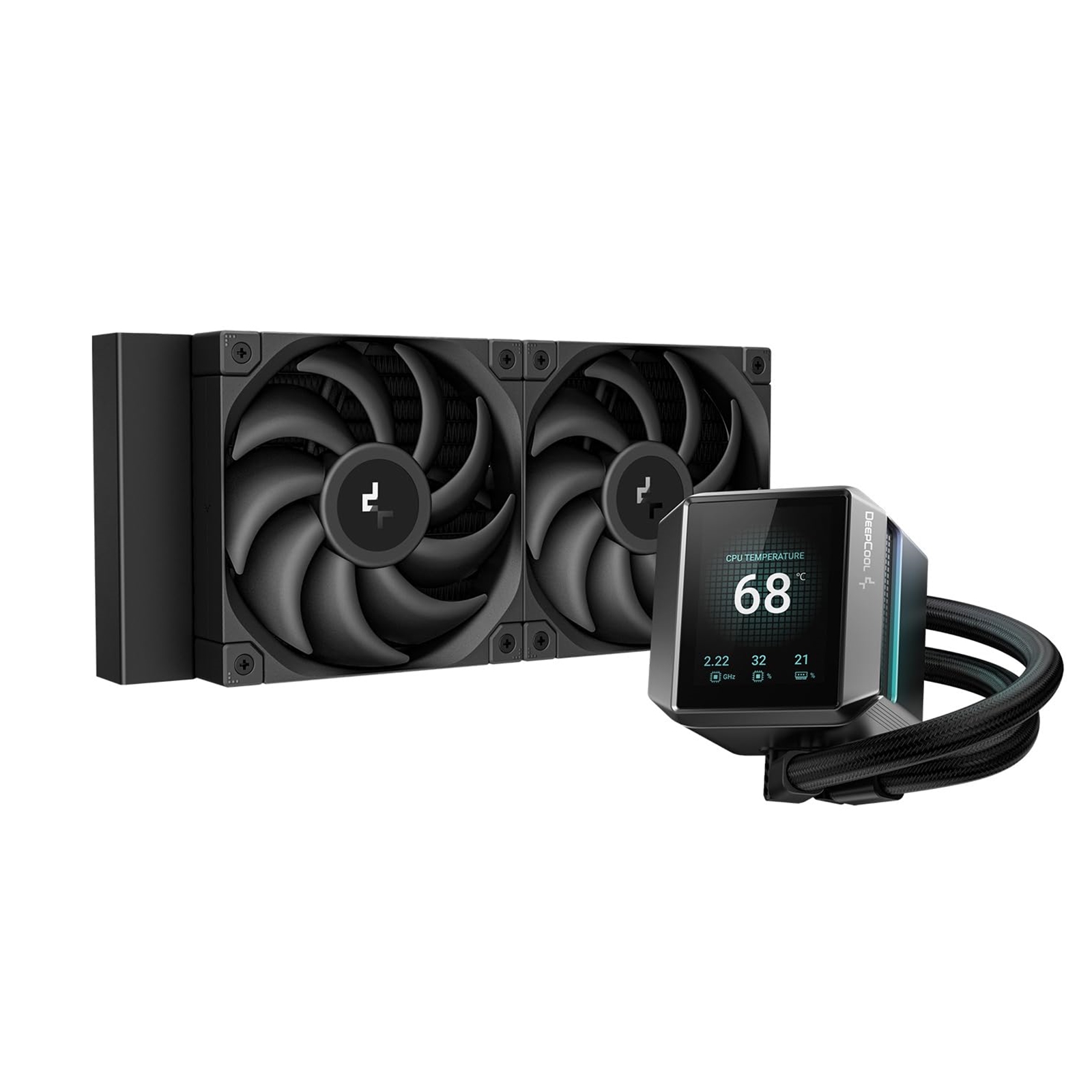

DeepCool Mystique 240 CPU Cooler, Personalized Cooling with 2.8″ TFT LCD Screen and Enhanced Pump Performance, 5 year warranty

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2150RPM
• Radiator Size: 240mm
• LED Colour: None

MYSTIQUE 240
The MYSTIQUE series is DeepCool’s new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8″ TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.

MYSTIQUE 240
Visualizing Your Imagination

MAGNIFICENTLY SHARP 2.8″ LCD
Customize the large 2.8″ TFT screen with your personalized content. The screen has a very sharp 640×480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 240 utilizes built-in gyroscopic sensors.

DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard’s ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

5th GENERATION PUMP
Built on DeepCool’s optimized 5th generation high-performance water pump, the MYSTIQUE 240 brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 240 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 240 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.

ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool’s patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 240 to the latest mainstream CPUs is included in the box, so you are ready to go.

Specification

Application
Intel
LGA1700/1200/1151/1150/1155/1851
AMD
AM5/AM4

Radiator Dimensions
282 x 120 x 27 mm (L x W x H)

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
93 x 77 x 66 mm (L x W x H)

Pump Speed
3400 RPM±10%

Pump Noise
21 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.35 A

Pump Power Consumption
4.2 W

Fan Dimensions
120 x 120 x 25 mm (L x W x H)

Fan Speed
500~2150 RPM±10%

Fan Airflow
72.45 CFM

Fan Noise
=36.49 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.3 A

Fan Power Consumption
3.6 W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.45 W(PUMP)

Display Specifications
2.83 inch 480 x 640 TFT LCD
