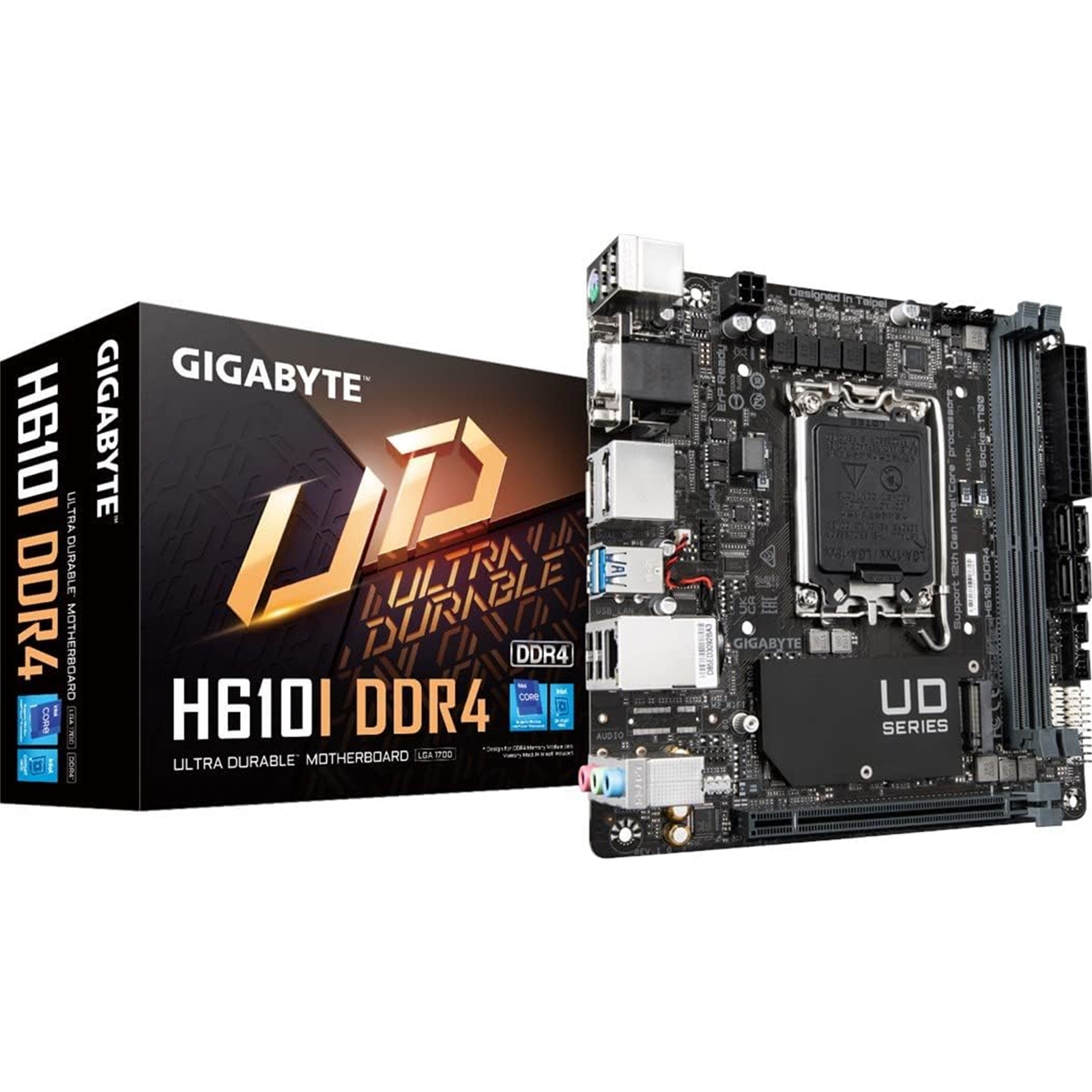

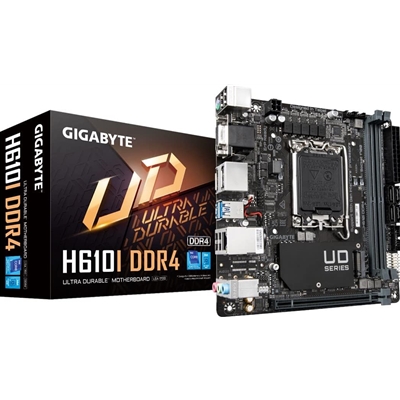

Gigabyte H610I DDR4 Ultra Durable Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel H610
• Form Factor: Mini ITX
• Memory Slots: DDR4 – 2 Slots
• M.2 Compatibility: PCIe / SATA
• USB C: No

Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2 , Intel GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel® Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
4+1+1 Phases DrMOS.
Solid capacitors to improve transient response and minimize oscillation.
Solid Pin CPU Power Connector.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Chipset
Intel H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Intel GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots
1 x PCI Express x16 slot, running at x16

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
2 x DisplayPorts
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Ambient LED
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
