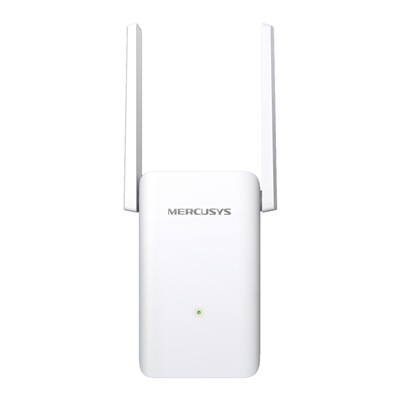

Mercusys ME80X AX3000 Wi-Fi Range Extender

• Connection Type: Range Extender
• Speed: 3000Mbps
• Access Point: Yes

Mercusys ME80X AX3000 Wi-Fi 6 Range Extender

Dual Band Speeds up to 3000 Mbps
2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Armed with WiFi 6
Improves virtually every aspect of your network: speed, efficiency, and capacity.

Gigabit Wired Connection
Provides speedy wired connections for PCS, IPTVS.and game consoles.

Works with Any Routers
To Extend WiFi to Where You Need It Most.

Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.

Built-In Access Point Mode
Works as RE mode and AP mode.

Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Wireless

Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency
2.4GHz and 5GHz

WiFi Speeds
574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity
5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

Wireless Security
WEP, WPA, WPA2, WPA3-PSK

Hardware

Dimensions
138.6 x 100.3 x 68.4 mm

Interfaces
1 Gigabit Ethernet Port

Button
WPS / Reset Button

Antenna Type
2x External Antennas

Power
13W

Others

Certifications
RoHS

Network Services Enabled by Default
Web Server

Device configuration and management
Port: 80/443; Protocol: HTTP/HTTPS

DHCP Server
IP address assignment
Port: 67; Protocol: UDP/DHCP

SSH for APP
Port: 20001; Protocol: TCP/ssh

TMPD for APP
Manage and configure device through app
Port: 20001; Protocol: UDP/tmpd

TDP Server for APP
device discovery for app
Port: 20002; Protocol: UDP

Package Contents
Wi-Fi Range Extender ME80X
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing
