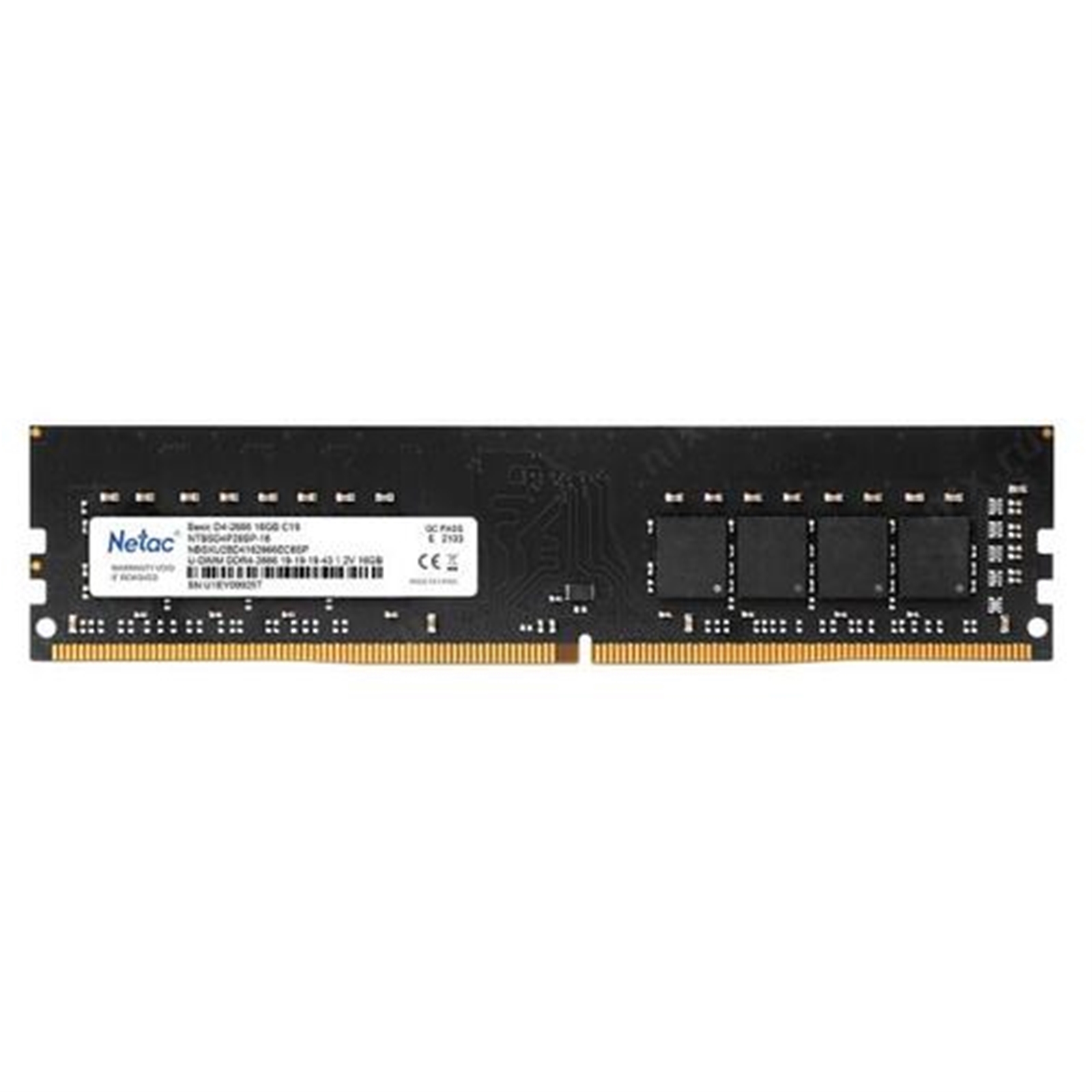

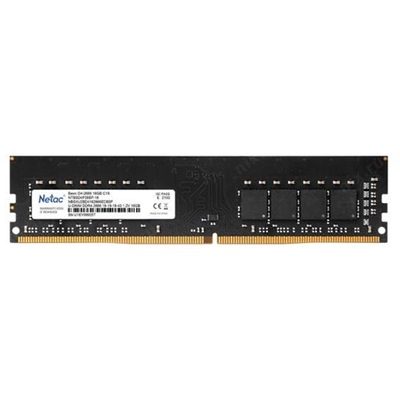

Netac NTBSD4P26SP-16 16GB DIMM System Memory, DDR4, 2666MHz, 1 x 16GB, 288 Pin, 1.35v, CL16-20-20-40

• Form Factor: DIMM
• DDR Type: DDR4
• Speed: 2666MHz
• Capacity: 16GB
• RGB: No

Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PC’s

Features

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
– Low-power auto self refresh (LPASR)
– Data bus inversion (DBI) for data bus
– On-die VREFDQ generation and calibration
– On-board I2C serial presence-detect (SPD) EEPROM
– Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
– Selectable BC4 or BL8 on-the-fly (OTF)
– Databus write cyclic redundancy check (CRC)
– Temperature controlled refresh (TCR)
– Command/Address (CA) parity
– Per DRAM Addressability is supported
– 8 bit pre-fetch
– Fly-by topology
– Command/Address latency (CAL)
– Terminated control command and address bus
– PCB: Height 1.23” (31.25mm)
– Gold edge contacts
– RoHS Compliant and Halogen-Free

Specifications

Internal memory
16 GB

Internal memory type
DDR4

Memory clock speed
2666 MHz

Suitable For
Notebook

Memory voltage
1.2 V

Colour
Black

Backlight
No
