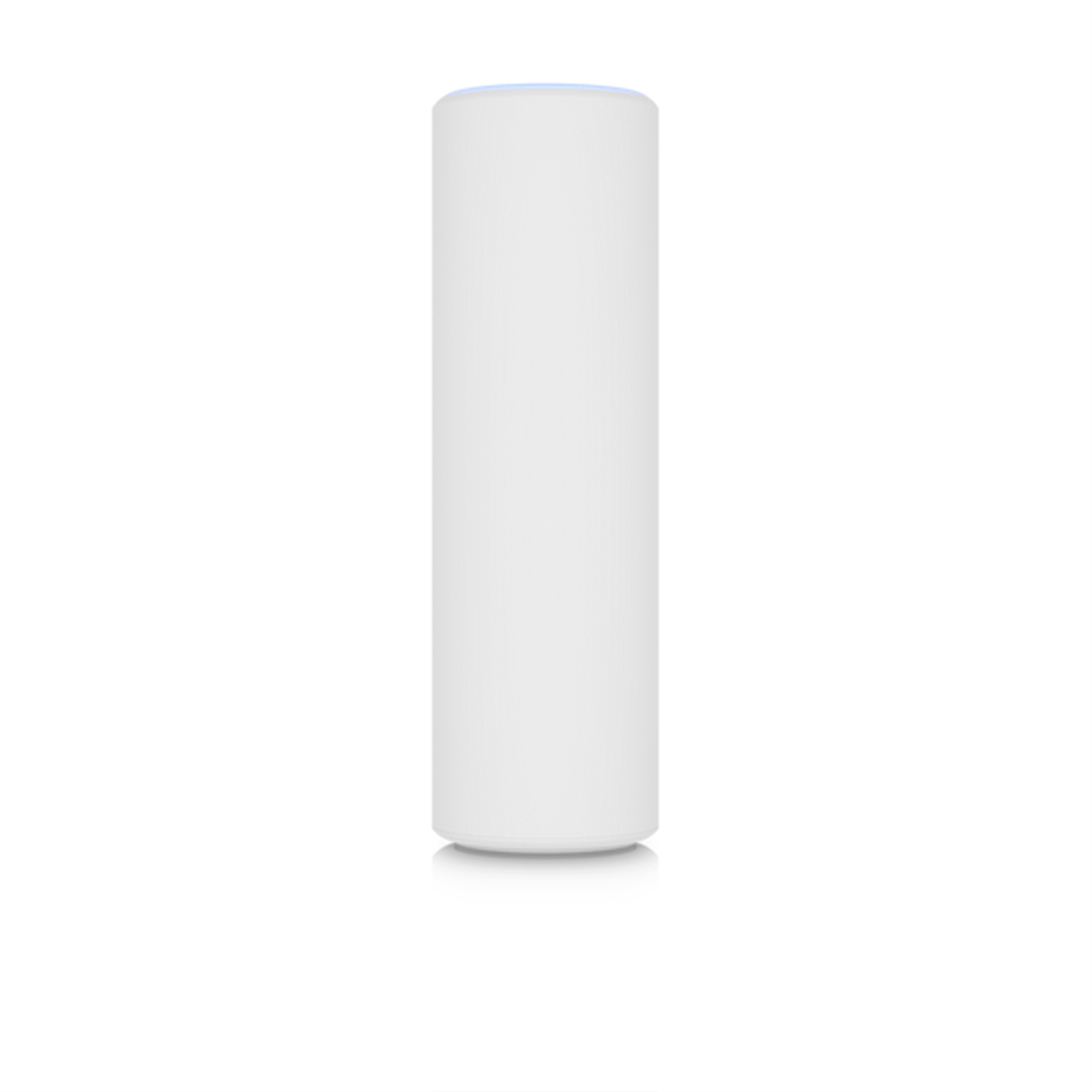

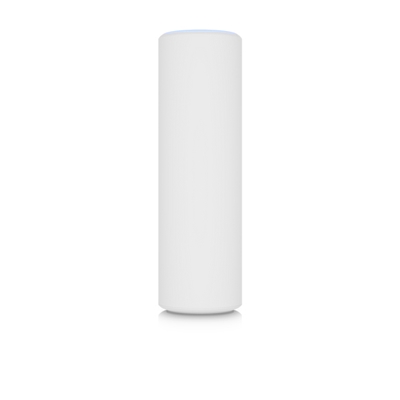

Ubiquiti UniFi U6 Mesh WiFi 6 Indoor/Outdoor Access Point (Injector included)

• Type: Mesh
• Speed: WiFi 6
• Indoor or Outdoor: Indoor/Outdoor
• POE Capability: 48v
• Pack Size: Single

Indoor/outdoor, 4×4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (2×2 MIMO) bands. This access point also operates at full 4×4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Specification

Data transmission

Ethernet LAN data rates
1000 Mbit/s

Maximum data transfer rate
4800 Mbit/s

Performance

2.4 GHz
Yes

5 GHz
Yes

Reset button
Yes

Frequency band
2.4 – 5 GHz

VLAN support
Yes

Quality of Service (QoS) support
Yes

Networking standards
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.1Q
IEEE 802.3af

Ethernet LAN data rates
1000 Mbit/s

Maximum data transfer rate
4800 Mbit/s

MIMO type
Multi User MIMO

MIMO
Yes

Wireless LAN features

Frequency band
2.4 – 5 GHz

Network

Ethernet LAN data rates
1000 Mbit/s

Cabling technology
10/100/1000Base-T(X)

Maximum data transfer rate
4800 Mbit/s

Bluetooth
Yes

MIMO type
Multi User MIMO

MIMO
Yes

Maximum data transfer rate (2.4 GHz)
573.5 Mbit/s

Maximum data transfer rate (5 GHz)
4800 Mbit/s

Security

Security algorithms
WPA
WPA-Enterprise
WPA-PSK
WPA2
WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Cabling technology
10/100/1000Base-T(X)

Power

Power consumption (max)
11.4 W

Power over Ethernet (PoE)
Yes

Input current
0.32 A

AC input voltage
44 – 57 V

Design

International Protection (IP) code
IPX5

Housing material
Aluminium, Plastic

Placement
Ceiling
Pole
Table
Wall

Product colour
White

Reset button
Yes

LED indicators
Yes

Antenna

Antenna type
Internal

Antenna gain level (max)
5 dBi

Technical details

Reset button
Yes

Harmonized System (HS) code
85176990

Indication

LED indicators
Yes
