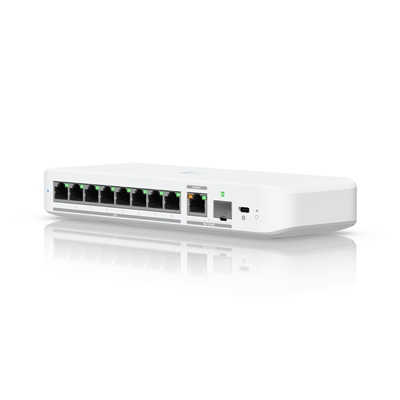

Ubiquiti USW-FLEX-2.5G-8 UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered Managed Switch

• Speed: 2.5 GbE
• Ports: 8
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: No

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

Dimensions
212.9 x 76 x 33.5 mm
(8.4 x 3 x 1.3″)

Port Layout
2.5 GbE RJ45
8

10 GbE RJ45
1

10G SFP+
1

Form Factor
Compact Desktop, wall, DIN, magnetic

Switching Capacity
60 Gbps

Total Non-Blocking Throughput
30 Gbps

Forwarding Rate
45 Mpps

Supported VLANs
256

MAC Address Table Size
4000

STP and RSTP
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast and Broadcast Rate Limiting
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

Loop Protection
Yes

Max. Power Consumption
14W with PoE input
14W with AC adapter input

Power Method
(1) USB Type-C, 5V DC, 3A
(1) PoE+

Power Input Method
USB Input
PoE

Power Supply
AC/DC, external, 15W

Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE

Management
Ethernet

Weight
395 g (0.87 lb)

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

Certifications
CE, FCC, IC
