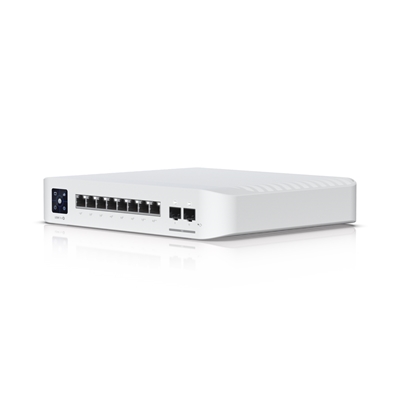

Ubiquiti USW-PRO-8-POE UniFi Switch Pro 8 Port Layer 3 POE++ Managed Switch

• Speed: Gigabit
• Ports: 8
• POE Capability: 48v
• Managed or Unmanaged: Managed
• Rack Mountable: No

Ubiquiti UniFi USW-Pro-8-PoE Professional 8 Port PoE Switch

Key Features
An 8-port, Layer 3 switch
6 x GbE PoE+ ports
2 x GbE PoE++ ports
2 x 10G SFP+ ports
120W total PoE availability

The Ubiquiti UniFi USW-Pro-8-PoE is an advanced 8-port, Layer 3 switch that offers both PoE+ and PoE++ outputs. This switch is equipped with six Gigabit Ethernet (GbE) PoE+ ports and two GbE PoE++ ports, along with two 10G SFP+ ports, providing versatile connectivity options. It offers a total Power over Ethernet (PoE) availability of 120W.

The USW-Pro-8-PoE’s enclosure is made from a combination of plastic and metal, ensuring durability. The device features an Ethernet In-Band management interface and a 1.3″ touchscreen LCM display for easy control and monitoring. It supports a total non-blocking throughput of 28 Gbps and a switching capacity of 56 Gbps.

USW-Pro-8-PoE uses a universal input of 100–240V AC, with a maximum power consumption of 30W (excluding PoE output). The switch provides a maximum PoE wattage per port of 15W for PoE, 30W for PoE+, and 60W for PoE++.

The USW-Pro-8-PoE is certified by CE, FCC, and IC, and is managed with UniFi Network Application version 7.5.176 or later.

Specifications

Mechanical

Weight & Dimensions
200 x 248 x 44 mm
2.1 kg

Enclosure materials
Polycarbonate, metal

Mount material
Polycarbonate

Hardware

Management interface
Ethernet In-Band

Networking interface
(8) GbE RJ45 ports
(2) 10G SFP+ ports

PoE interface
(6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎

Total non-blocking throughput
28 Gbps

Switching capacity
56 Gbps

Power method
Universal input, 100—240V AC, 2A Max.

Power supply
AC/DC, internal

Supported voltage range
100—240V AC

Max. power consumption
30W (Excluding PoE output)

Total available PoE
120W

Max. PoE wattage per port by PSE
PoE: 15W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V

LCM display
(1) 1.3″ touchscreen

LEDs
RJ45 ports: link/activity

Button
Factory reset

Operating temperature
-5 to 45° C (23 to 113° F)

Operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Application Requirements

UniFi Network
Version 7.5.176 and later
