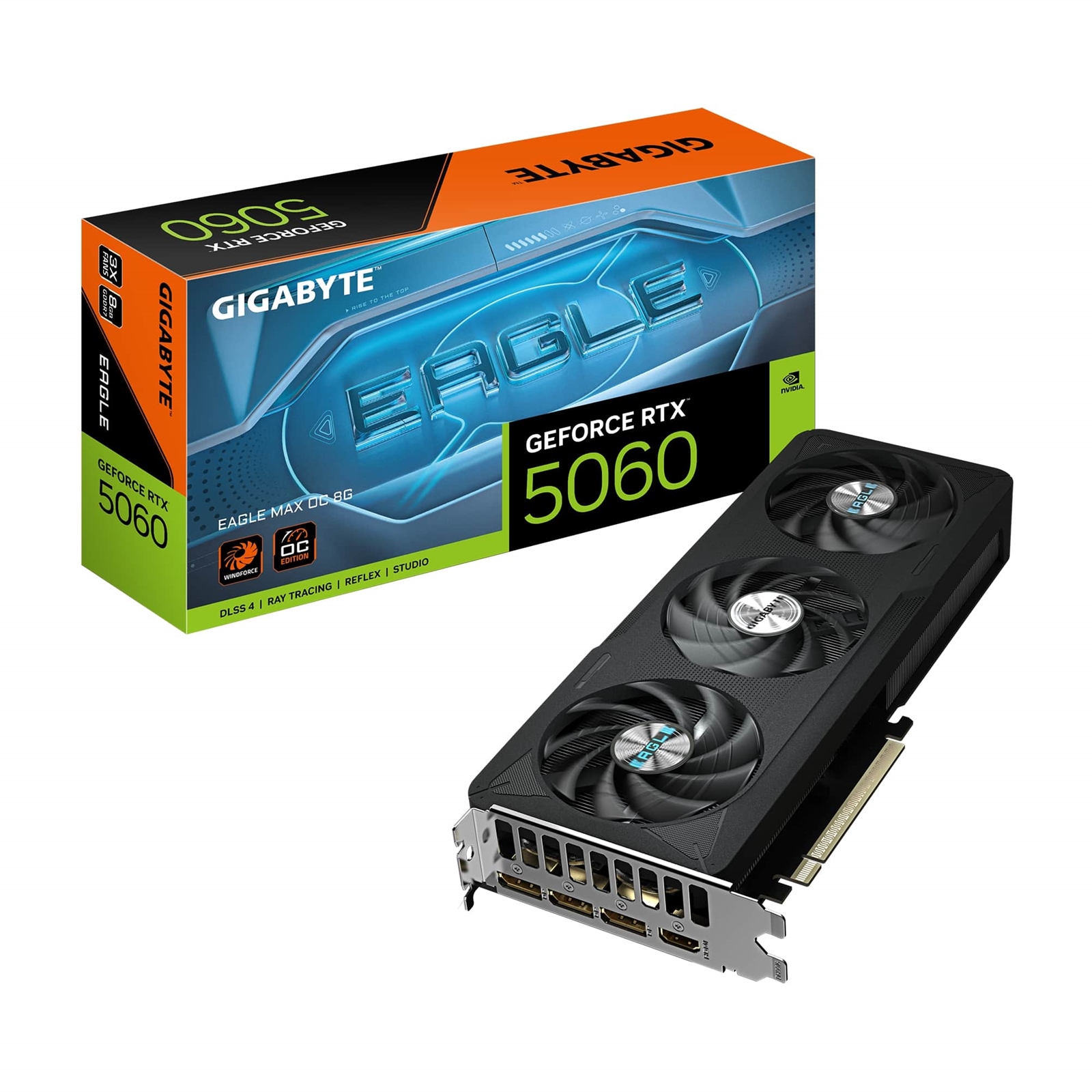

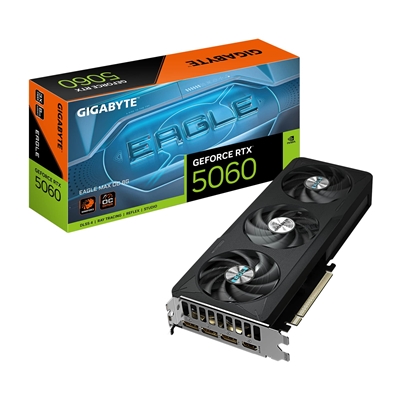

Gigabyte NVIDIA GeForce RTX 5060 EAGLE MAX OC 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2550 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Ports

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: ATX
• Memory: 8GB
• Fans: 3
• RGB: No

GeForce RTX 5060 EAGLE MAX OC 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2550 MHz (Reference card :2497 MHz)

Specification

Graphics Processing
GeForce RTX 5060

Core Clock
2550 MHz (Reference card :2497 MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=281 W=115 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide
