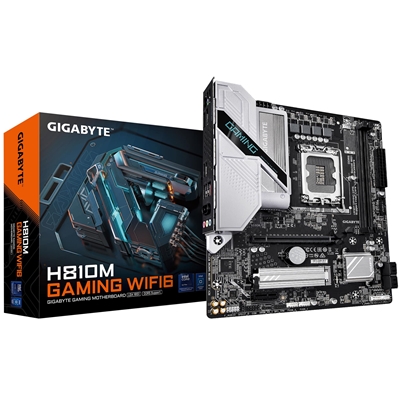

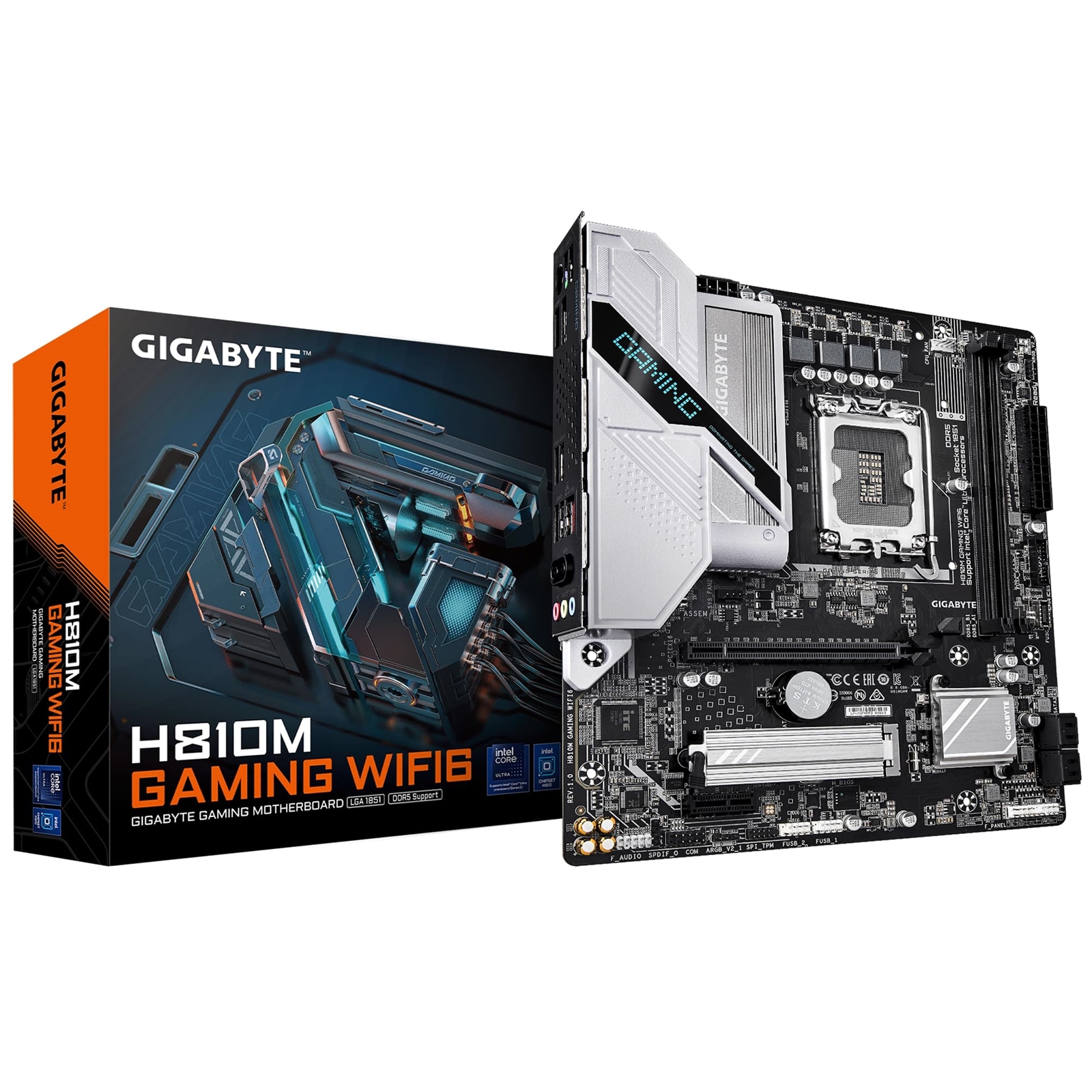

Gigabyte H810M GAMING WIFI6 Intel 1851 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, WiFi 6, 1x DisplayPort / 1x HDMI Port

• Socket: 1851
• CPU Compatibility: Intel Ultra
• Chipset: Intel H810
• Form Factor: Micro ATX
• Memory Slots: DDR5 – 2 Slots
• M.2 Compatibility: PCIe 4 / PCIe 3
• USB C Header: Yes

Gigabyte H810M GAMING WIFI6 Motherboard

Features

Supports Intel Core Ultra processors (Series 2)
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch: PCIe x16 Slot with Quick Release Design
M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity: HDMI, DisplayPort

Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.

Hybrid VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

4 VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.

1 VCCGT Phase
Optimized for integrated GPU performance and memory management within the CPU.

VCCSA Phases
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling

Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue

Smart Fan 6
Cool. Quiet. Customized.

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specifications

CPU
LGA1851 socket: Support for Intel Core Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel H810 Express Chipset

Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
5 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel NPU driver is only supported on Windows 11.

Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
