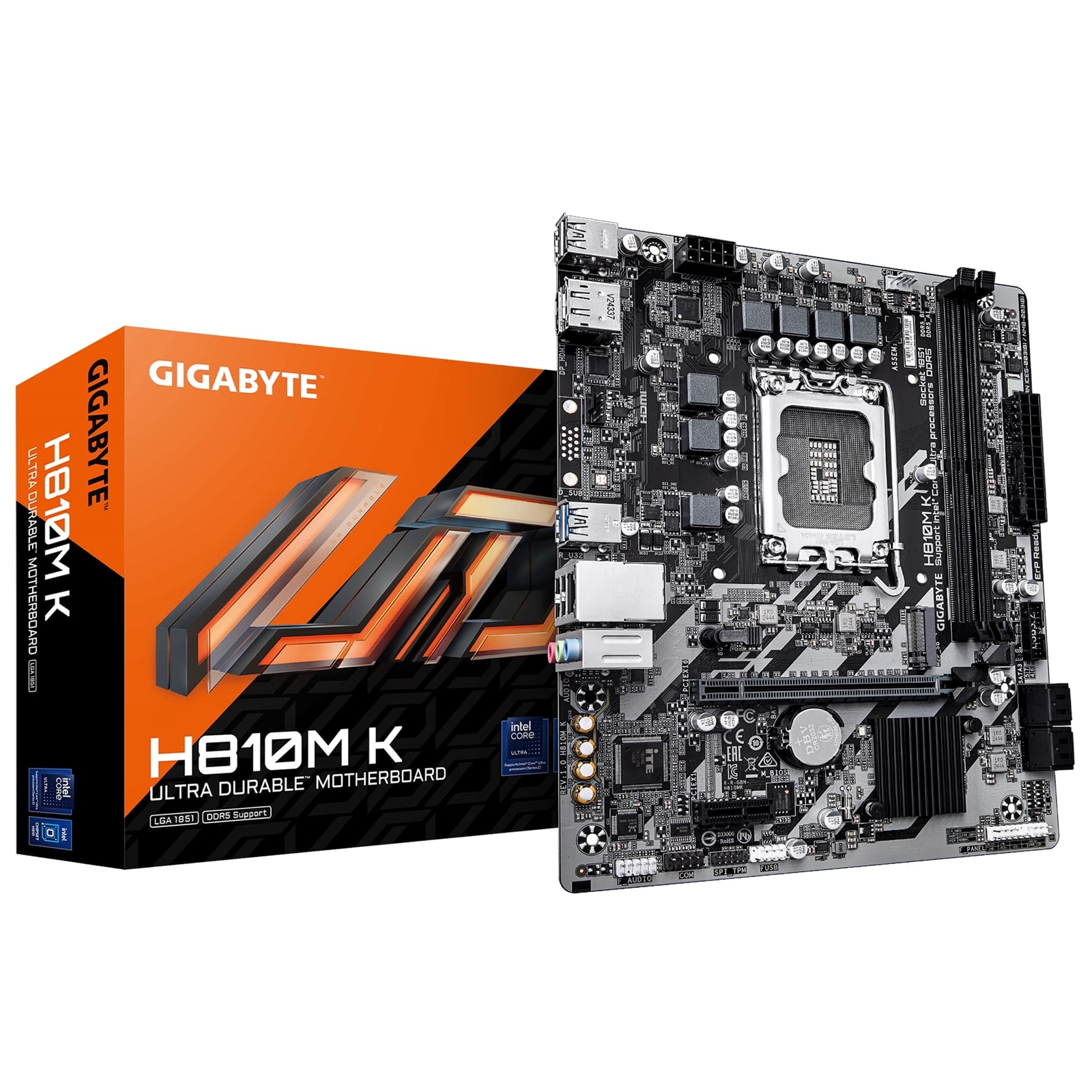

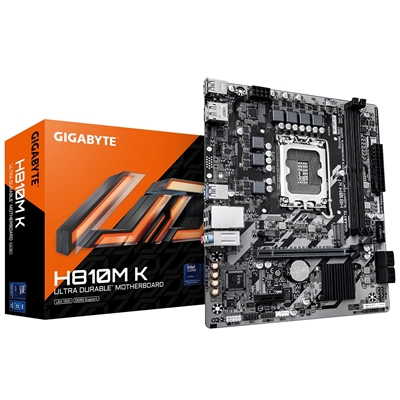

Gigabyte H810M K Intel 1851 Socket Motherboard, Micro ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

• Socket: 1851
• CPU Compatibility: Intel Ultra
• Chipset: Intel H810
• Form Factor: Micro ATX
• Memory Slots: DDR5 – 2 Slots
• M.2 Compatibility: PCIe 4 / PCIe 3
• USB C Header: No

Gigabyte H810M K Motherboard

Features

Supports Intel Core Ultra processors (Series 2)
Hybrid 3+1+2 phases VRM solution
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI, DisplayPort

Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Smart Fan 6
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

GbE LAN
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard

Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

Q-FLASH Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Specifications

CPU
LGA1851 socket: Support for Intel Core Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel H810 Express Chipset

Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz
* Support for DisplayPort 2.1 version.

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x D-Sub port
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel NPU driver is only supported on Windows 11.

Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
